Overhauling Ford Rear Axles

This is from the 1965 Comet-Falcon-Fairlane-Mustang Shop Manual, telling you how to set up the Ford 8 and 9 inch rearends. Enjoy! (the material is for both, except where it says except 289 HP which means 8, and with 289 HP which means 9)

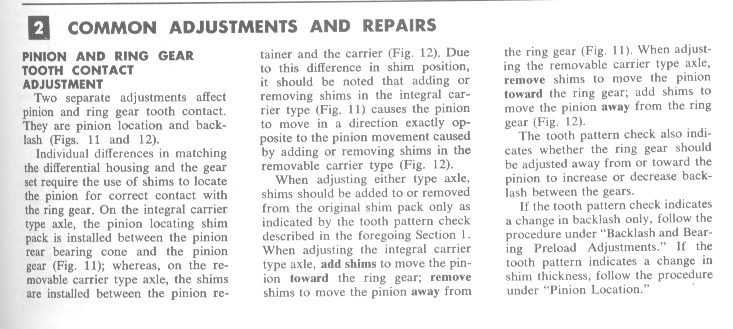

page 1

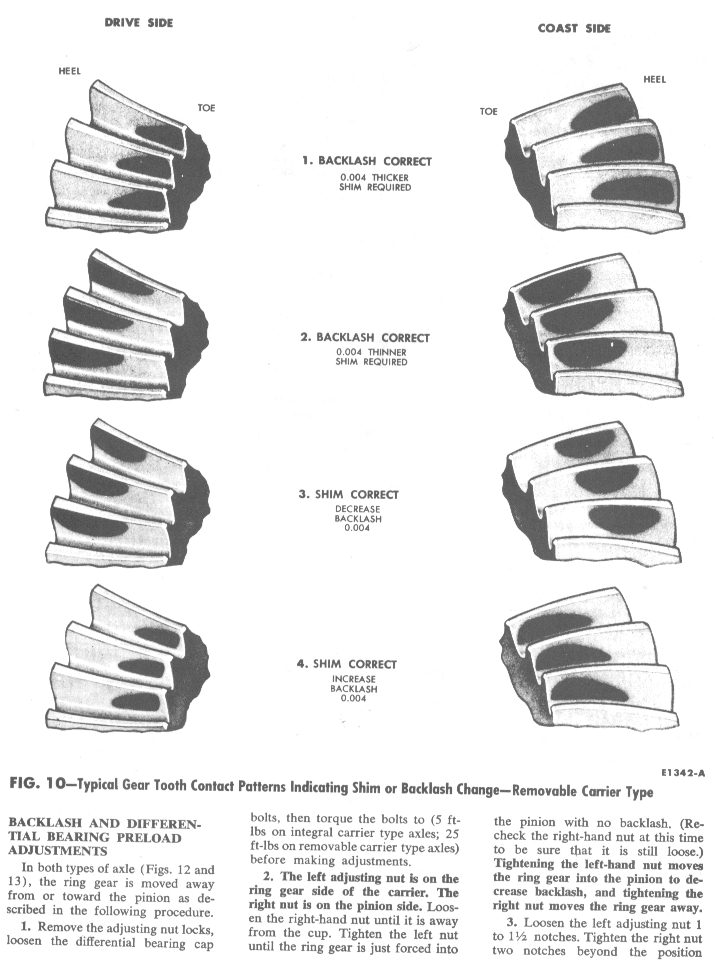

page 2

page 3

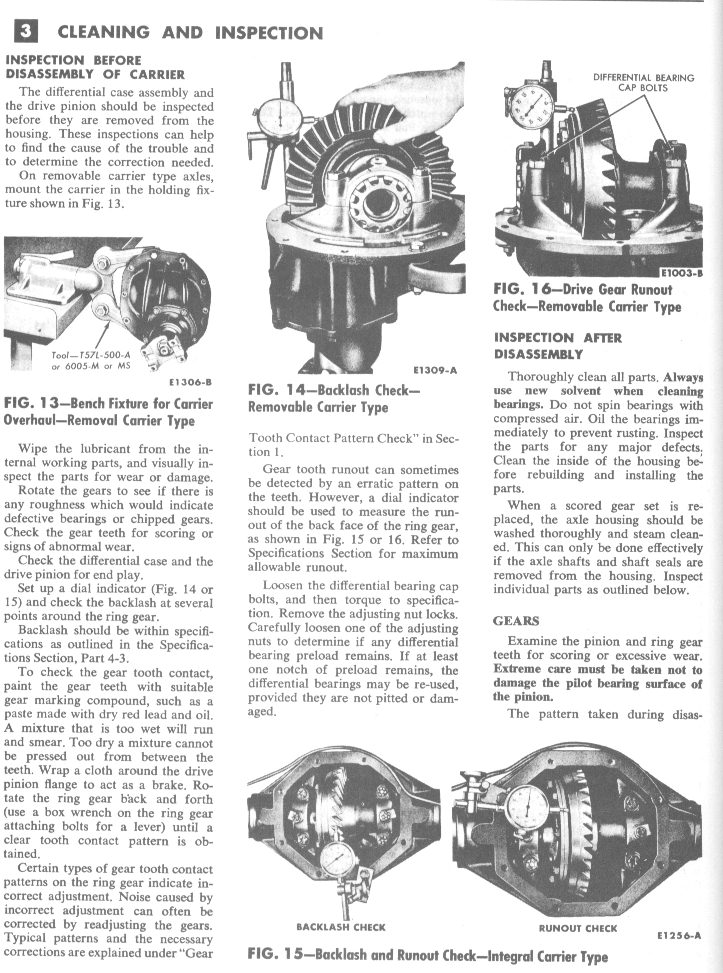

page 4

page 5

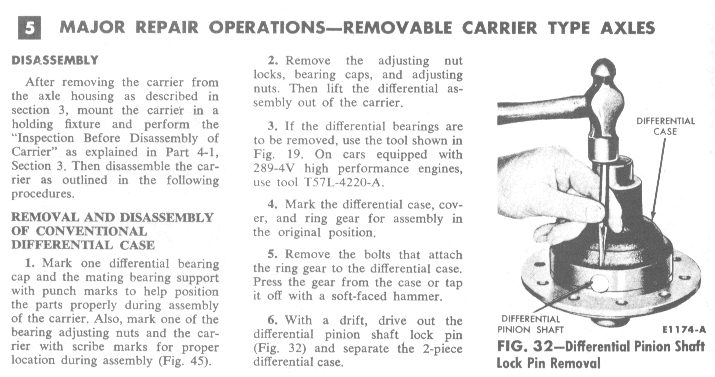

page 6

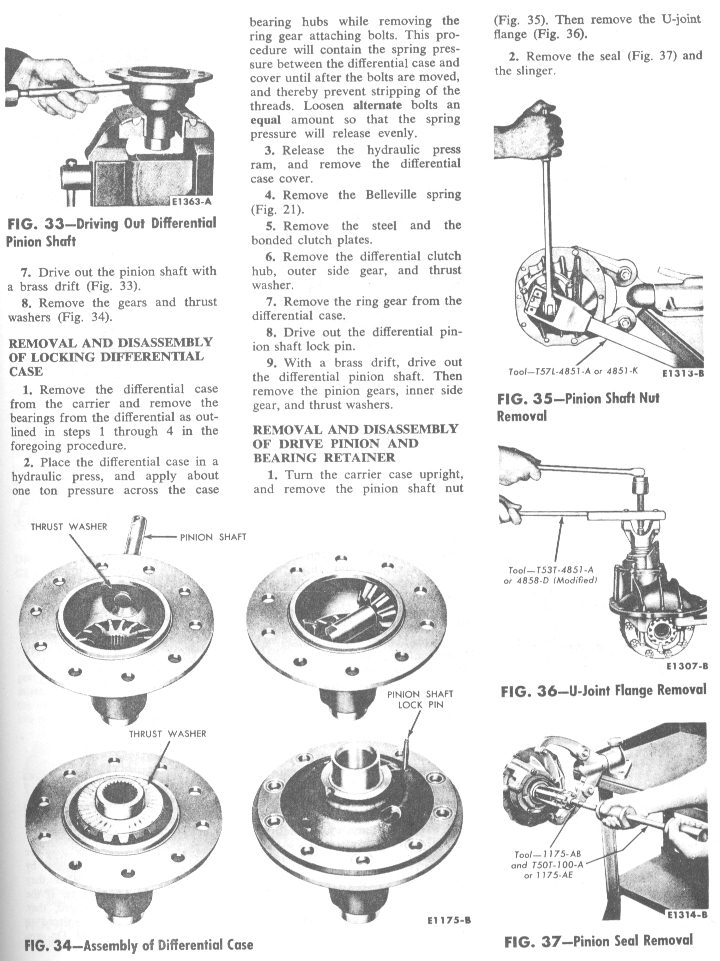

page 7

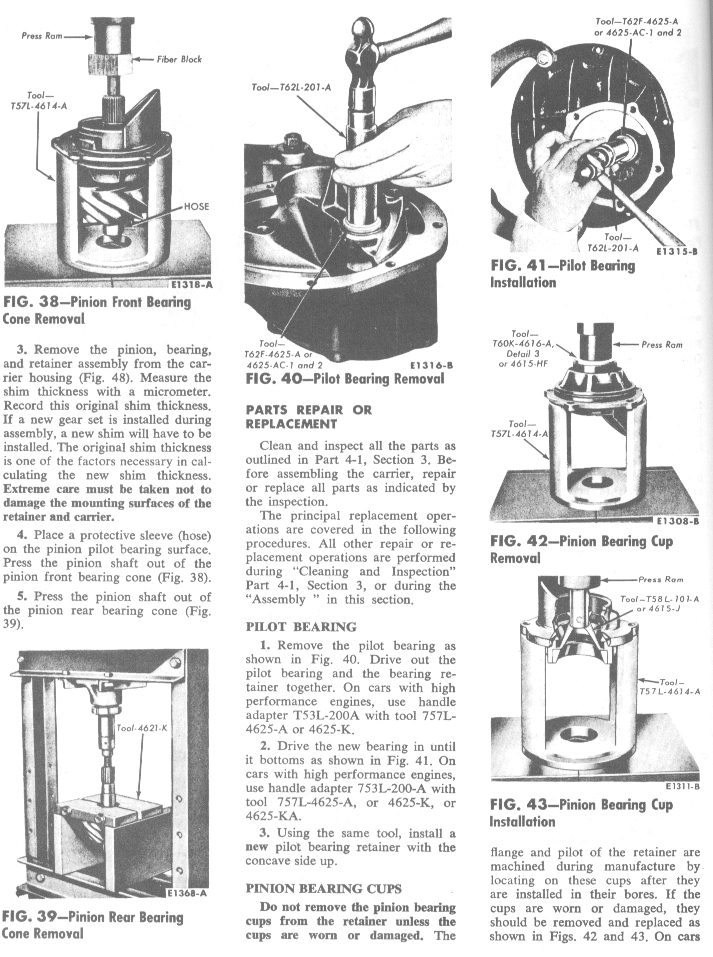

page 8

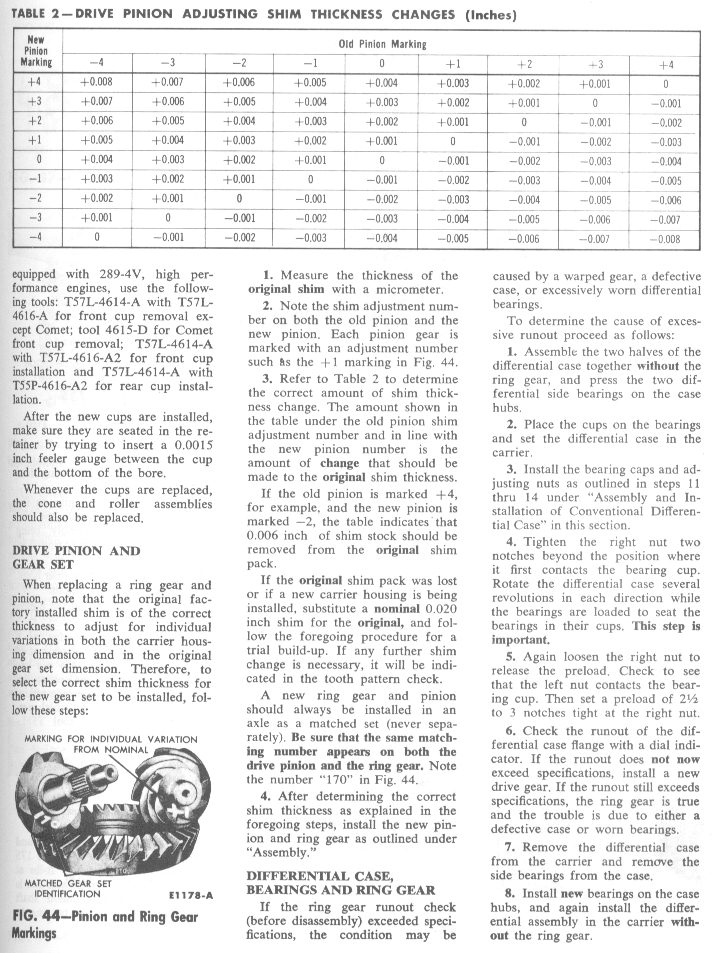

page 9

page 10

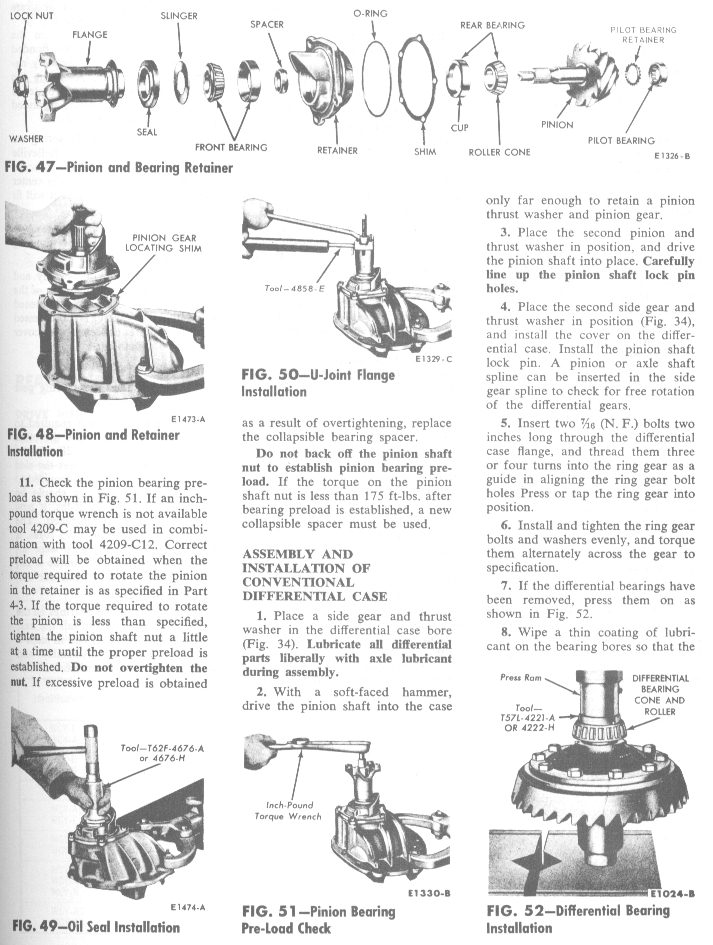

page 11

page 12

page 13

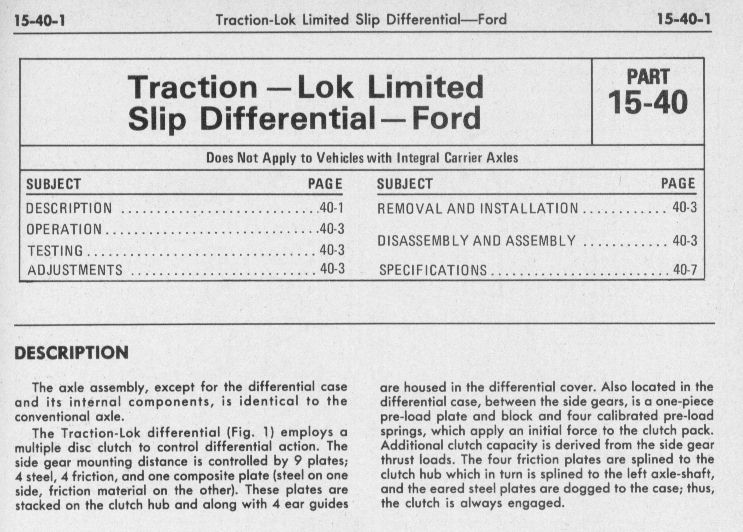

And some pages from the 1979 manual showing how to overhaul the 9" traction-lok differential

page 1

page 2

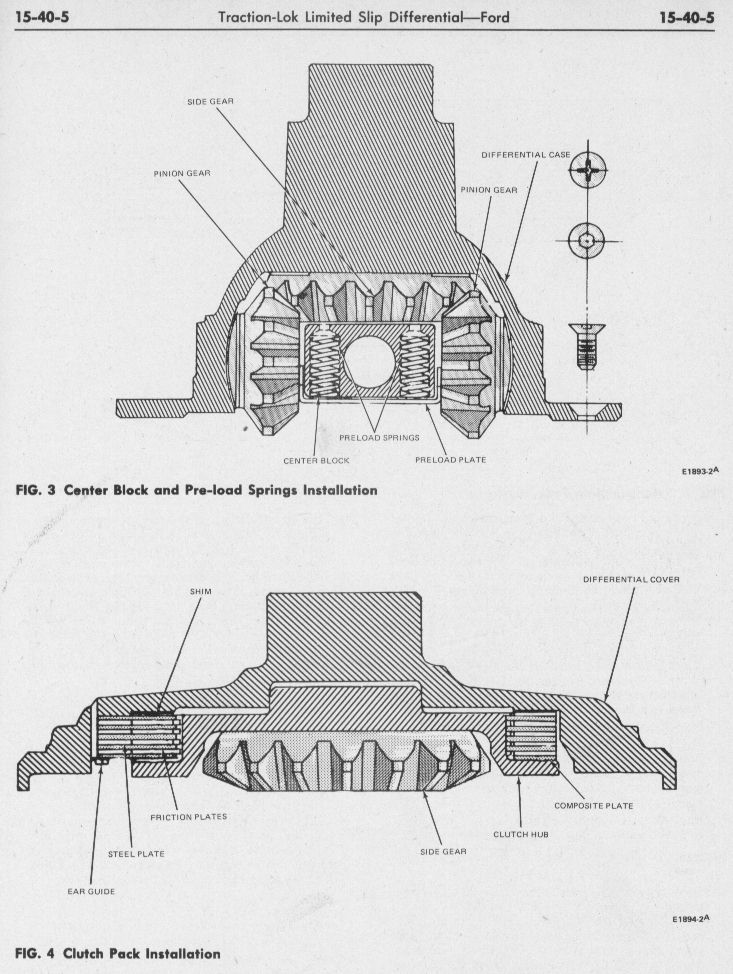

page 3

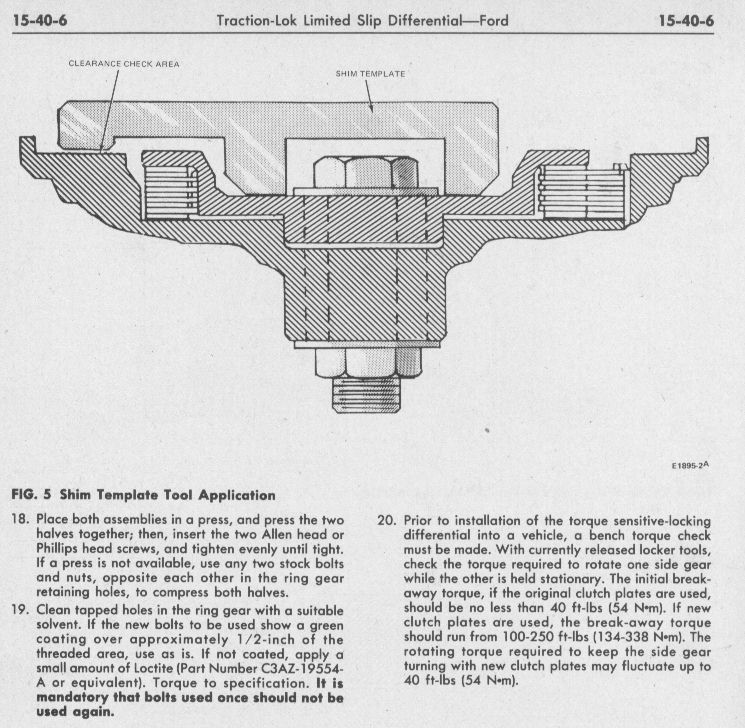

page 4

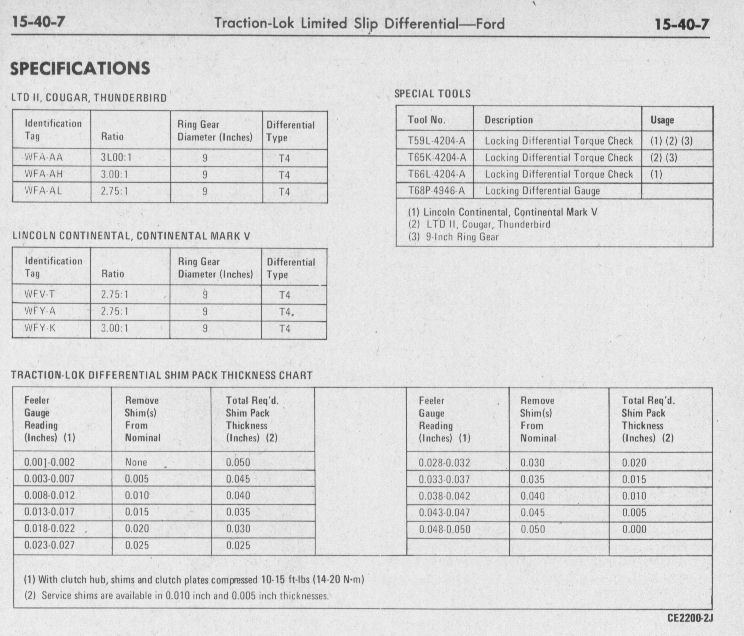

page 5

and here is a general rearend gear setup guide from Yukon Gear, in pdf form
